TEM Grids,

depending on the unique microscopic requirements

Transmission Electron Microscopy Grids, or TEM Grids, are utilized in TEM microscopes. TEM Grids are generally made of copper because of the low potential to alter the magnetic field of the objective lens. Other materials such as nickel, gold, titanium, aluminum, and stainless steel can also be used for TEM Grids, depending on the unique microscopic requirements.

Electron Microscopy Sciences provides many TEM Grids in materials like copper, gold, and nickel. Mesh size ranges from 200, 300, and 400 and is manufactured in-house and through Quantifoil Micro Tools. The EMS TEM Grids are offered in various categories, including Specimen Support Grids, Lift Out Grids, Support Film on Grids, C-Flat, Quantifoil, and Graphene and Graphene Oxide.

Browse TEM Grid Categories

Specimen Support Grids

Specimen Support Grids are flat discs with mesh or holes used to hold thin sections of the specimen in position. EMS offers Specimen Support Grids in various grid types, from Veco Grids to Maxtaform Grids, Index Grids, and more. Most of the EMS Specimen Support Grids are manufactured without plastics, such as the C-flat™, which arrives clean and ready for use.

EMS Grids

Synaptek Grids

Veco Grids

Athene Grids

Embra Grids

Gilder Grids

Index Grids

Lift Out Grids

Lift-out Grids from EMS are meant for FIB applications, including accepting lamellae prepared by FIB or FIB-SEM systems. EMS offers Lift-out Grids, such as Omniprobe Lift-Out Grids and Carb-N-Grids. The Omniprobe Copper 5-Post Lift-Out Grids feature low profile sides, five post copper lift-out grids designed explicitly for in-situ lift-out, and multiple indexed mounting locations. The Carb-N-Grids™ 2 & 4 Post 3mm Lift-Out Grids are a durable carbon lift-out grid that facilitates precise Elemental Analysis.

Omniprobe Grids

Carb-N-Grids

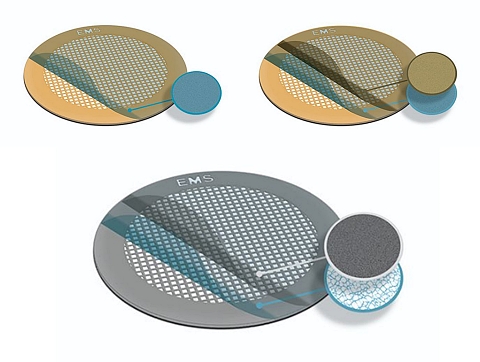

Support Film on Grids

Formvar

Formvar + Silicon Monoxide

Lacey Formvar Carbon Grids

Carbon

Silicon Monoxide

Holey Carbon

Formvar + Carbon

Lacey Carbon

Beryllium

Pioloform

Quantifoil

Quantifoil Grids are also ideal for high-resolution cryo-EM data collection. EMS offers a variety of Quantifoil Grids, such as Quantifoil® Holey SiO2 Films, Quantifoil® with different hole shapes, and Quantifoil® R 5/20.

Quantifoil

Graphene & Graphene Oxide

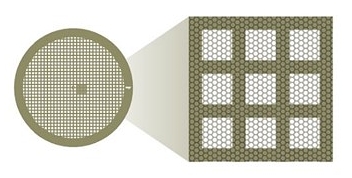

EMS provides a variety of Graphene TEM Grids that stop particles from passing through holes while still allowing the electron beam to intermingle with the specimen without any interference. Graphene TEM Grids available through EMS include Graphene Oxide on Holey Carbon Copper Mesh Grids, Graphene Oxide On Ultra-Flat Thermal SiO2, Graphene Oxide on Lacey Carbon 300 Mesh Copper TEM Grids, and more.

Graphene & Graphene Oxide



C-Flat

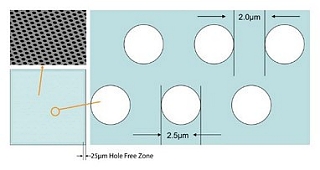

C-flat™ is an ultra-flat, holey carbon-coated TEM support grid for transmission electron microscopy (TEM). Unlike competing holey carbon films, C-flat™ is manufactured without plastics, so it is clean upon arrival and the user has no residue to contend with.

C-flat™
